VIDEO & AUDIO AMPLIFIERS

Splitter

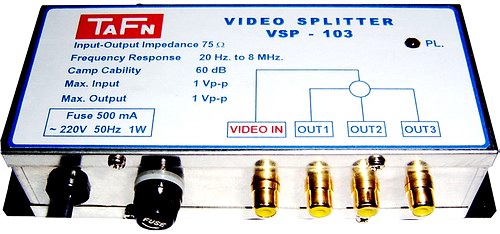

VSP-103   Video splitter

The VSP-103 is a compact video 3 output splitter when from a single video source has to be spitted to maximum of 3 outputs in a economical solution.

  Video input 75 ohm (1way)

  Video output 75 ohm (3way)

  0 dB gain x 3way
  Clamp capability 60dB

  Compact small design

 Specifications

Input / output connectors

RCA

Input / output impedance

75 ohm

Gain

0 dB x 3 outputs

Bandwidth

8 MHz

Max. Input

1V p-p

Max. Output

1V p-p

Size

77(L) x 40(H) x 150(W) mm

Weight

370 g
