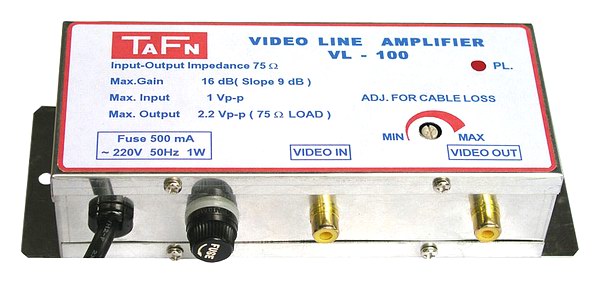

The VL-100 is a video amplifier design for long cable installations.  The device is capable of sending video composite signals trough a maximum of 600 meters of cable (RG-6) compensating the frequency slope trough the cable.

  Video input 75 ohm

  Video output 75 ohm

  Clamp capability 60dB

  Gain and slope for cable losses

  Compact small design

Input / output connectors

RCA

Input / output impedance

75 ohm

Bandwidth

8 MHz

Max. Input

1V p-p

Max. Output

2.2V p-p

Size

77(L) x 40(H) x 150(W) mm

Weight

370 g
