fm broadcast Equipment

Exciter

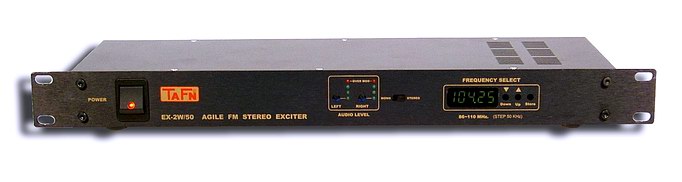

EX-2W/50   2W agile FM stereo exciter

The EX-2W50 is a top spec broadcast FM exciter that is also ideally suited as a low power transmitter.

It features a high stability synthesized controlled by microprocessor.



  Wide frequency range and 50KHz steps
  High spectral purity and top performance
  Top value stereo separation
  Internal RF output filter
  Microprocessor controlled
  Audio VU overmod meter

 Specifications

Frequency range

86 to 110 MHz

Frequency setting

50 KHz steps

Frequency control

PLL synthetizer

Modulation type

Direct VCO frequency modulation

Nominal frequency deviation

+/- 75 KHz

RF output power

2 W

Harmonic emission

< -60dBc (internal output filter)

Spurious emission

< -90dBc

Audio signal input

Left + Right

Audio frequency range

10 Hz to 15 KHz

Audio input impedance

10KOhm

Crosstalk between left and right channel

> 50dB

Pre-emphasis

75 or 50 uS (internal selection switch)

Operating voltage

220V  (210 to 240V)

Size

19" rack mount  480 x 50 x 180 mm (1U)

Weight

2.2 Kg
